Access Control System Essentials

Complete Guide to Access Control System Equipment and Integrations
Equipment Needed for Access Control Systems. An access control system combines hardware and software components to protect physical or digital access to buildings, rooms, or systems.
Different equipment may be required depending on the size and type of system (small office vs. major corporation, for example), but these are the essential components: Panel for Controller/Access Control Function: acts as the “brain” of the system. It determines whether to permit or forbid access after obtaining information from readers. Type: centralized controller (for several doors), Independent controller (for systems with a single door)

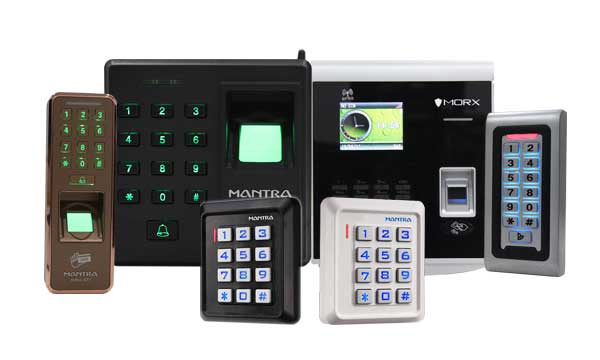

🛠️ 2. Biometric and card readers. Function: Uses credentials to verify an individual’s identity. Types: RFID readers (for fobs and keycards), Bluetooth or NFC readers (for mobile credentials), Biometric scanners (iris, fingerprint, and facial recognition), PIN pads (for entering codes)
3. Qualifications Function: Users use it to identify themselves to the access system. Types: RFID fobs and cards Mobile applications (via Bluetooth/NFC) Biometric information (facial scans, fingerprints), and codes on the keypad
4. Electronic Door Locks Function: When access is allowed, lock or unlock the door. Types: Maglocks, or electromagnetic locks, are powerful but need constant electricity. Electric strikes only require power during actuation and are compatible with mechanical locksets. Smart locks are frequently utilized in small businesses or home settings.
5. PSU (Power Supply Unit) Function: Supplies power to readers, door locks, and the control panel. Frequently consists of: backup battery, protection against surges Protection from fuses
6. Network Elements (For IP-based systems) Function: Links the system to a cloud dashboard or central server. Includes: Switches, Ethernet cables (Cat5e/Cat6), routers, switches, or injectors for PoE (Power over Ethernet)
🖥️ 7. Access Control Software Function:
This software is used to manage, monitor, and configure the access control system. Features: Management of users and credentials, setting up times for access reports and audit logs. Integration with CCTV and alarms 🔔
8. Request-to-Exit (REX) and Exit Devices: Permits users to leave without a password. Types: Motion detectors Buttons that push to exit Panic bars (for exits in an emergency)
9. Extra Integrations CCTV cameras: To confirm access occurrences visually. Alarm systems: Set off notifications in the event of forced entry or unlawful access.

Intercom Systems: For remote access authorization and two-way conversation.
📦 Component Purpose Summary Table Panel for Access Control. The system’s brain. Credential input for a card or biometric reader. Credentials (biometric or card): Determine if the user’s electronic lock secures the door. Power Source powers gadgets. Component-to-component network hardware communication Software to control and keep an eye on access, REX, and exit devices permits a free and safe exit. Alarms and CCTV are optional. improves audits and security.


🏢 Example: Office Door Device Equipment Configuration HID of the controller Mercury Controller HID iCLASS or biometric reader RFID Keycard Lock for Credentials Lock with Electric Strike Motion sensor and push-to-exit power supply for the exit device 12V DC PSU with battery backup Web-based access control dashboard software
🔐 Concluding Remarks: The following factors influence the choice of access control equipment: The quantity of doors and users, the required level of security, and integration with other systems (such as security cameras or alarm systems). Which is better, on-premises or cloud control?
If you need assistance creating a system for a particular facility or situation, please let me know. Email: aricknicho@gmail.com or comment below.
